3074192

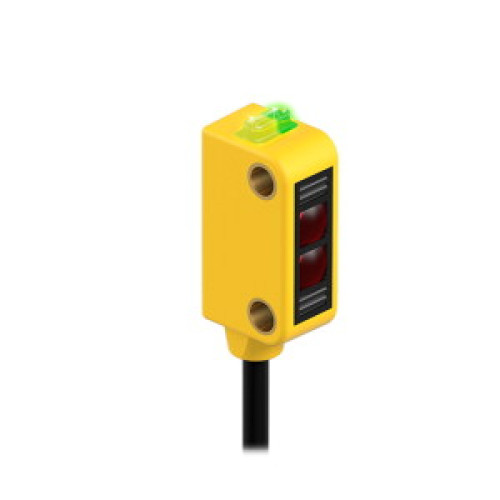

WORLD-BEAM Q12 Series: Emitter, Range: 2 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M8 Pigtail QD

Manufacturer's No: Q126EQ3     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Emitter, Range: 2 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M8 Pigtail QD

Availability On Request

£66.24
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Miniature sensor with a compact design
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 2000 mm
  • Cable Length: 0.15 m, PVC material
  • Cable with M8 × 1 male end, 3-pin connector
  • Protection Class: IP67
  • LED indicator visible from all angles


Product

Manufacturer Material ID -
Q126EQ3
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

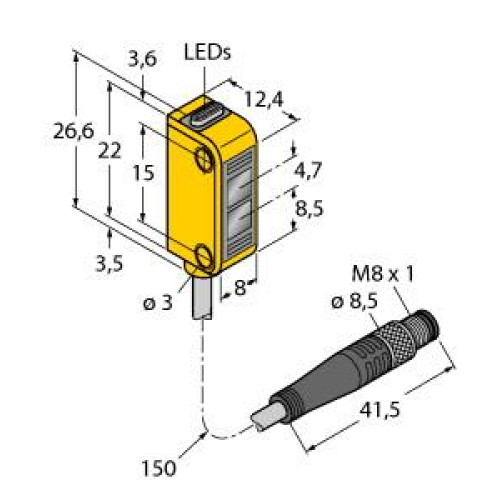

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability On Request

£66.24
