77109 {B}

WORLD-BEAM Q12 Series: Retroreflective, Range: 1.5 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Manufacturer's No: Q12AP6LVQ3     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Retroreflective, Range: 1.5 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Availability Available to order

£134.92
  • Photoelectric sensor
  • Retroreflective sensor
  • Miniature sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 1500 mm
  • Cable length: 0.15 m
  • Cable: PVC, 150 mm, with M8 x 1 male end, 3-pin
  • Protection class: IP67
  • LED all-round visible
  • Indication of insufficient excess gain

Read more

  • PNP switching output
  • Light operation


Product

Manufacturer Material ID -
Q12AP6LVQ3
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

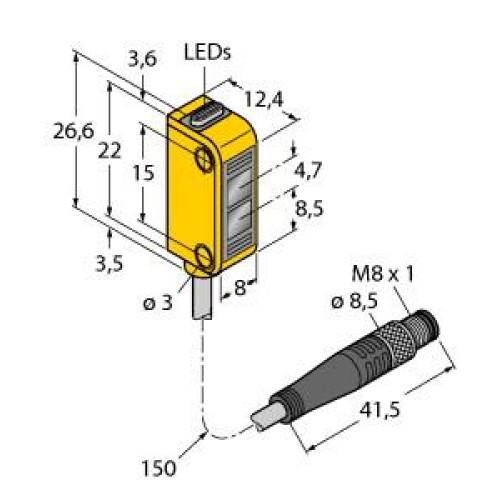

Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
1500 Millimetre
Rated switching distance -
1500 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
Turck Banner

Availability Available to order

£134.92
