3074930

WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Manufacturer's No: Q12AP6RQ3     Manufacturer: Turck Banner
WORLD-BEAM Q12 Series: Receiver, Range: 2 m, Input: 10-30 V dc, Output: LO, 1 PNP, 150 (6 in) 3-pin M8 Pigtail QD

Availability On Request

£85.29
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Design: Miniature Sensor with M8 × 1 male end
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.15 m, PVC material
  • Protection Class: IP67
  • Features LED all-round visible
  • Includes indication of insufficient excess gain
  • Output: PNP switching output
  • Operation: Light operation


Product

Manufacturer Material ID -
Q12AP6RQ3
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

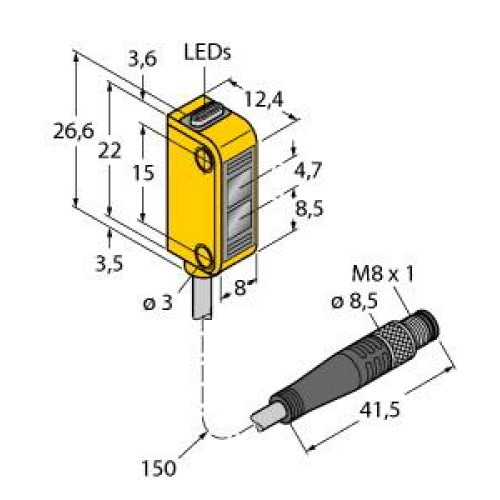

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
26.6 Millimetre
Housing material -
Plastic
Length of sensor -
12.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
1.3 Millisecond
Switching frequency -
450 Hertz
Type of electric connection -
Connector M8
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
640 Nanometre
Width sensor -
8 Millimetre
