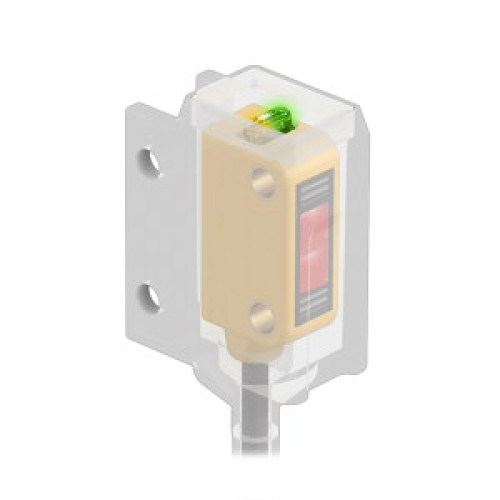

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: Q12RB6FF50CR     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

POA
  • Photoelectric sensor in diffuse mode with fixed-field background suppression
  • Miniature sensor with a maximum range of 50 mm
  • Operating voltage: 10-30 VDC
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • Chemical-proof PFA sheath
  • LED for all-round visibility
  • Indication of insufficient excess gain
  • Switching output: bipolar, dark operation


Product

Manufacturer Material ID -
Q12RB6FF50CR
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
5 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

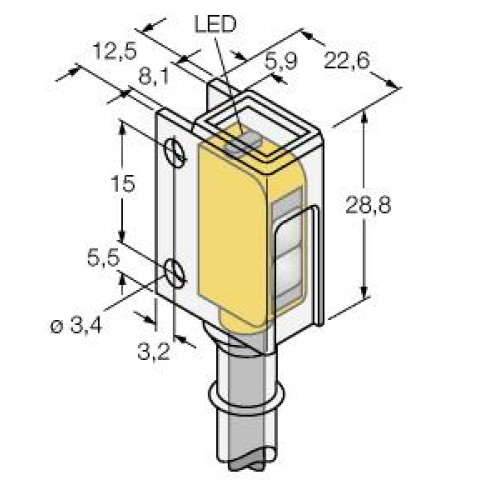

Height of sensor -
28.8 Millimetre
Housing material -
Plastic
Length of sensor -
22.6 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.85 Millisecond
Sensing mode -
Dark switching
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
12.5 Millimetre
