3078153

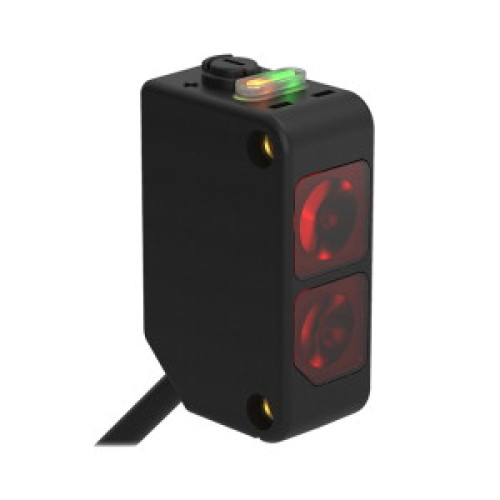

WORLD-BEAM Q20 Series: Long Range Diffuse (IR), Range: 1500, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft)

Manufacturer's No: Q20NDXL     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Long Range Diffuse (IR), Range: 1500, Input 10-30 V dc, Output: Complementary Solid-State NPN, 2 m (6.5 ft) Cable

Availability On Request

£97.99
  • Type: Photoelectric Sensor, Diffuse-Mode
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1500 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED: All-round visible
  • Sensitivity Adjustment: Via potentiometer
  • Output: NPN switching, changeover


Product

Manufacturer Material ID -
Q20NDXL
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

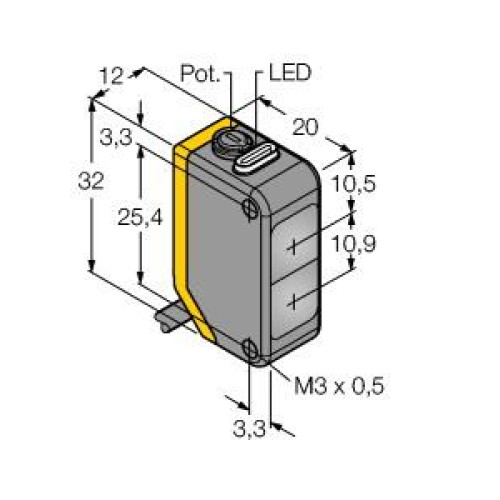

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1500 Millimetre
Reaction time -
0.8 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£97.99
