3077781

WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Manufacturer's No: Q20E     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, 2 m (6.5 ft) Cable

Availability On Request

£55.35
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 10-30 VDC
  • Maximum range: 12000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED with all-round visibility


Product

Manufacturer Material ID -
Q20E
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

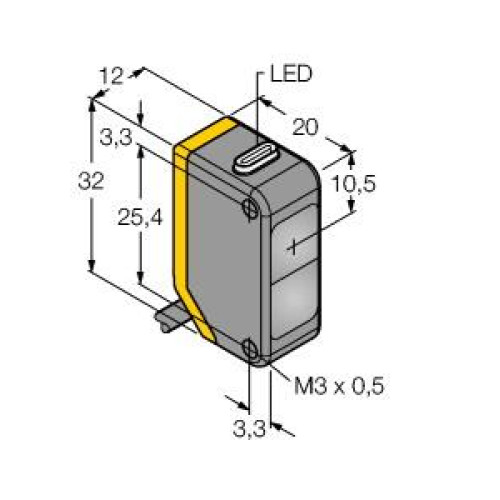

Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Rated switching distance -
12000 Millimetre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£55.35
