3078225

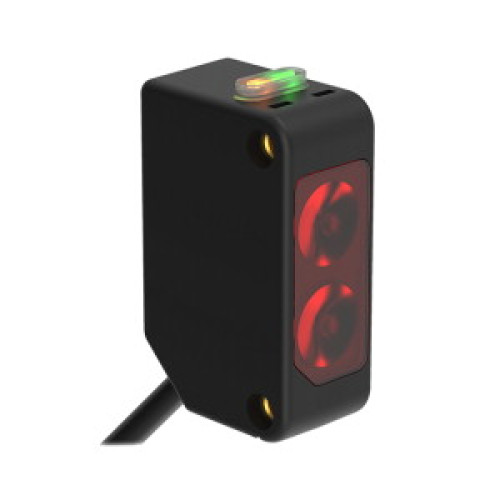

WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, 150 (6 in) M8 Pigtail QD

Manufacturer's No: Q20EQ     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, 150 (6 in) M8 Pigtail QD

Availability On Request

£63.52
  • Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 12000 mm
  • Cable Length: 0.15 m, Male end
  • Cable Type: PVC, M8 × 1, 4-pin, 150 mm
  • Protection Class: IP67
  • LED, all-round visible


Product

Manufacturer Material ID -
Q20EQ
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Rated switching distance -
12000 Millimetre
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
Turck Banner

Availability On Request

£63.52
