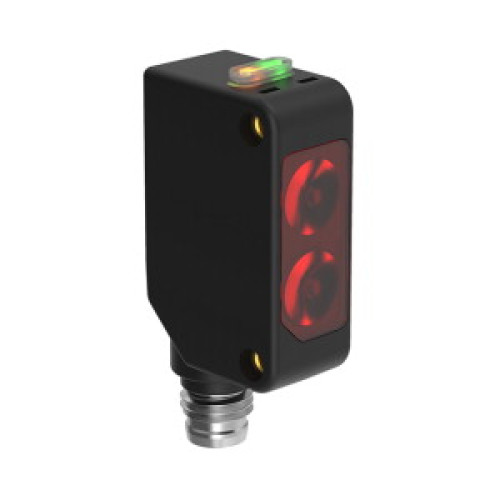

WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, M8 Integral QD

Manufacturer's No: Q20EQ7     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Emitter (Red), Range: 12 m, Input 10-30 V dc, Output: No output, M8 Integral QD

Availability Available to order

£56.49
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 12000 mm
  • Connector: Male M8 x 1; 4-pin
  • Protection Class: IP67
  • Features: LED, all-round visible


Product

Manufacturer Material ID -
Q20EQ7
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

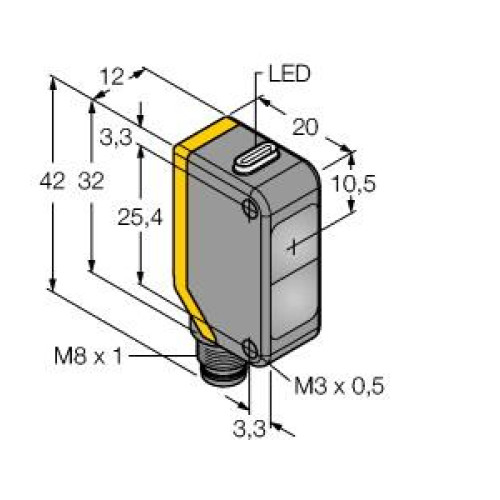

Height of sensor -
42 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
12000 Millimetre
Rated switching distance -
12000 Millimetre
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Wavelength of the sensor -
655 Nanometre
Width sensor -
12 Millimetre
