3078215

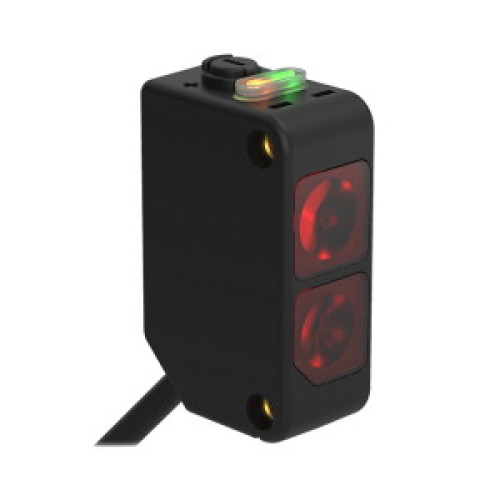

WORLD-BEAM Q20 Series: Retro, Range: 6 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M8 Pigtail QD

Manufacturer's No: Q20PLVQ     Manufacturer: Turck Banner
WORLD-BEAM Q20 Series: Retro, Range: 6 m, Input 10-30 V dc, Output: Complementary Solid-State PNP, 150 (6 in) M8 Pigtail QD

Availability On Request

£106.16
  • Photoelectric Sensor, Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 6000 mm
  • Cable Length: 0.15 m, Male end
  • Cable Type: PVC, M8 × 1, 4-pin, 150 mm
  • Protection Class: IP67
  • LED with all-round visibility
  • Sensitivity adjustment via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
Q20PLVQ
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
0.8 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
645 Nanometre
Width sensor -
12 Millimetre
