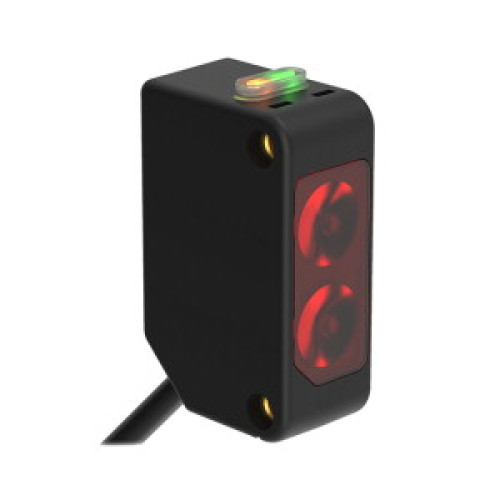

Photoelectric Sensor, Opposed Mode Sensor (Receiver)

Manufacturer's No: Q20PRLQ     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Receiver)

Availability On Request

POA
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 0.15 m, 4-pin, male end
  • Cable Type: PVC, M8 x 1, 150 mm
  • Protection Class: IP67
  • LED with all-round visibility
  • PNP switching output, changeover


Product

Manufacturer Material ID -
Q20PRLQ
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

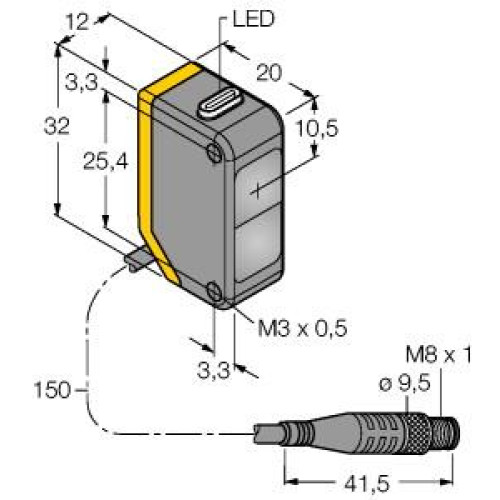

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
32 Millimetre
Housing material -
Plastic
Length of sensor -
20 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
600 Hertz
Type of electric connection -
Connector M8
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
12 Millimetre
