3031966

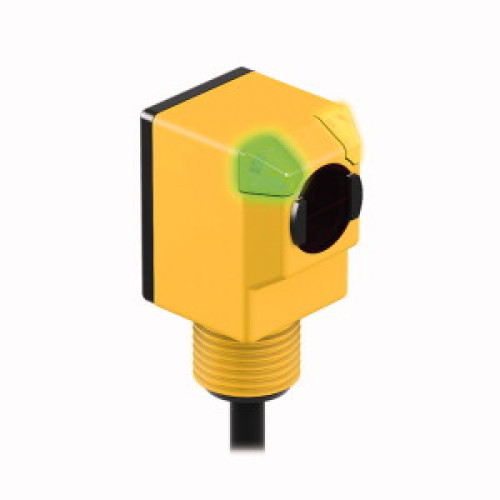

EZ-BEAM Q25 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: Q253E     Manufacturer: Turck Banner
EZ-BEAM Q25 Series: Emitter, Range: 20 m, Input: 20-250 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£97.99
  • Photoelectric sensor in Opposed Mode (Emitter)
  • Operating voltage: 20-250 VAC
  • Max. range: 20000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature: -40 to +70 °C


Product

Manufacturer Material ID -
Q253E
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Diameter sensor -
18 Millimetre
Height of sensor -
50.2 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
16 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£97.99
