34679 {B}

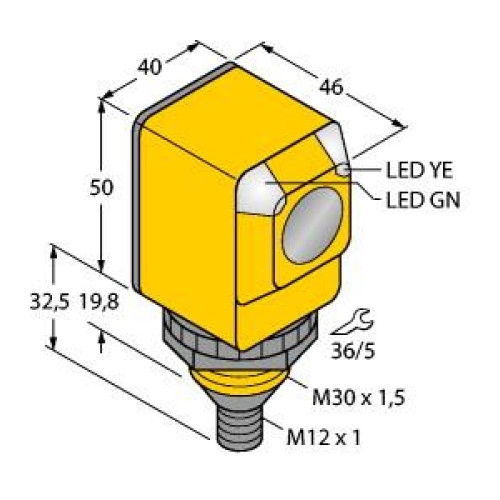

Q40SP6LPQ2 DC PNP POL RETRO MINI CONNECTOR

Manufacturer's No: Q40SP6LPQ2     Manufacturer: Turck Banner
Q40SP6LPQ2 DC PNP POL RETRO MINI CONNECTOR

Availability Available to order

£158.98
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 6000 mm
  • Connector: M12 x 1 Micro male (4-pin)
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
Q40SP6LPQ2
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
82.5 Millimetre
Housing material -
Plastic
Length of sensor -
46 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
3 Millisecond
Switching frequency -
160 Hertz
Type of electric connection -
Connector 7/8 inch
Type of light -
Polarized red light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
40.1 Millimetre
Turck Banner

Availability Available to order

£158.98
