3037003

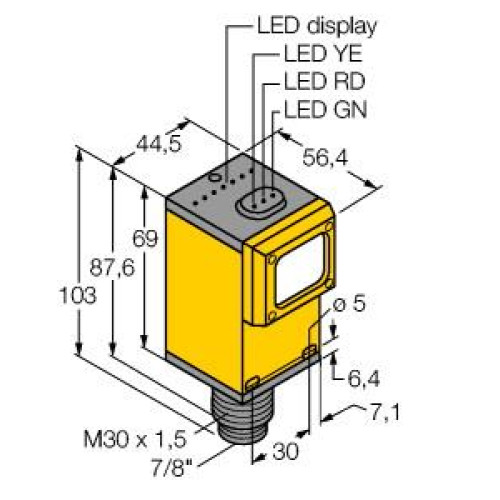

Q45 Series: Emitter, Range: 60 m, Input: 90-250 V ac, Output: Not Applicable, 3-pin Mini Integral QD

Manufacturer's No: Q452EQ     Manufacturer: Turck Banner
Q45 Series: Emitter, Range: 60 m, Input: 90-250 V ac, Output: Not Applicable, 3-pin Mini Integral QD

Availability On Request

£100.72
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 90-250 VAC
  • Maximum Range: 60000 mm
  • Connector: Male 7/8"
  • Protection Class: IP67


Product

Manufacturer Material ID -
Q452EQ
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
101.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Type of electric connection -
Connector 7/8 inch
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£100.72
