3040821

Q45 NAMUR: Glass Fiber Optic, Range: Depends on Fiber, Input: 5-15 V dc, Output: NAMUR, 9 m (30 ft) Cable

Manufacturer's No: Q45AD9F W/30     Manufacturer: Turck Banner
Q45 NAMUR: Glass Fiber Optic, Range: Depends on Fiber, Input: 5-15 V dc, Output: NAMUR, 9 m (30 ft) Cable

Availability On Request

£215.95
  • Photoelectric sensor for glass fibers
  • Cable length: 9 meters, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Operating voltage: 5 to 15 VDC
  • NAMUR output: dark <= 1.2 mA, light >= 2.1 mA
  • Compliant with EN 60947-5-6 (NAMUR)


Product

Manufacturer Material ID -
Q45AD9F W/30
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

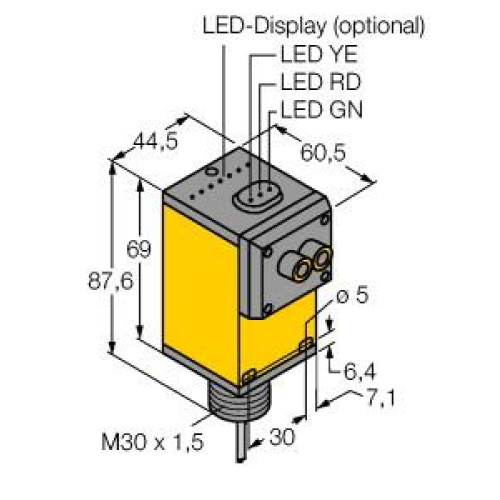

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
87.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
2.1 Milliampere
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
NAMUR
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£215.95
