3037622

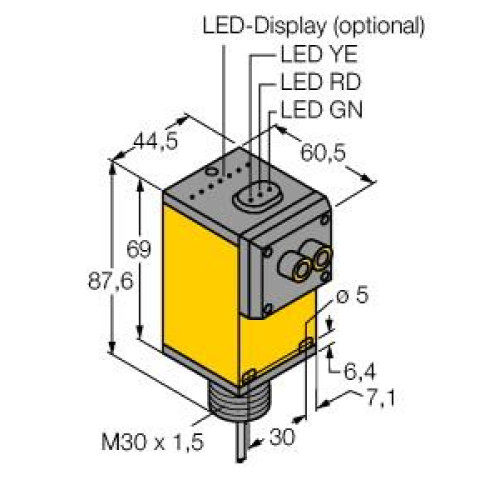

Q45 NAMUR: Plastic Fiber Optic, Range: Depends on Fiber, Input: 5-15 V dc, Output: NAMUR, 2 m (6.5 ft) Cable

Manufacturer's No: Q45AD9FP     Manufacturer: Turck Banner
Q45 NAMUR: Plastic Fiber Optic, Range: Depends on Fiber, Input: 5-15 V dc, Output: NAMUR, 2 m (6.5 ft) Cable

Availability On Request

£182.38
  • Photoelectric Sensor for Plastic Fibers
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Operating Voltage: 5-15 VDC
  • NAMUR Output: Dark <= 1.2 mA, Light >= 2.1 mA
  • Complies with EN 60947-5-6 (NAMUR) standards
  • ATEX Category: II 1 G, Ex Zone 0
  • Adapter Set PFK-B for Plastic Optical Fibers available separately


Product

Manufacturer Material ID -
Q45AD9FP
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
87.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
2.1 Milliampere
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
NAMUR
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£182.38
