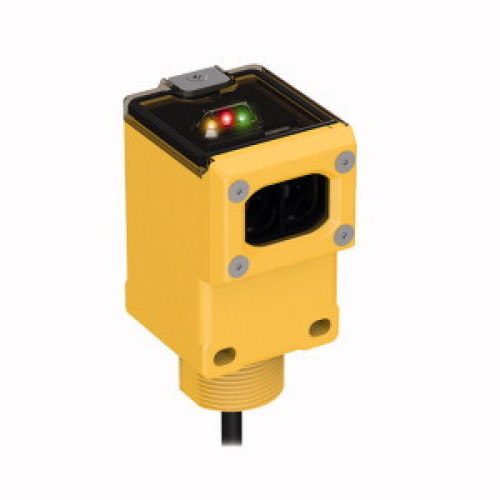

Q45 NAMUR: Polarized Retro, Range: 6 m, Input: 5-15 V dc, Output: NAMUR, 2 m (6.5 ft) Cable

Manufacturer's No: Q45AD9LP     Manufacturer: Turck Banner
Q45 NAMUR: Polarized Retro, Range: 6 m, Input: 5-15 V dc, Output: NAMUR, 2 m (6.5 ft) Cable

Availability On Request

£178.75
  • Photoelectric Sensor with Polarizing Filter
  • Retroreflective Sensor
  • Operating Voltage: 5-15 VDC
  • Max. Range: 6000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • NAMUR Output: Dark <= 1.2 mA, Light >= 2.1 mA
  • Compliant with EN 60947-5-6 (NAMUR) standards
  • ATEX Category: II 1 G, Ex Zone 0


Product

Manufacturer Material ID -
Q45AD9LP
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
54.1 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
5 Millisecond
Reflector included -
Sensing mode -
Light switching
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Other
Type of switching output -
NAMUR
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£178.75
