3037636

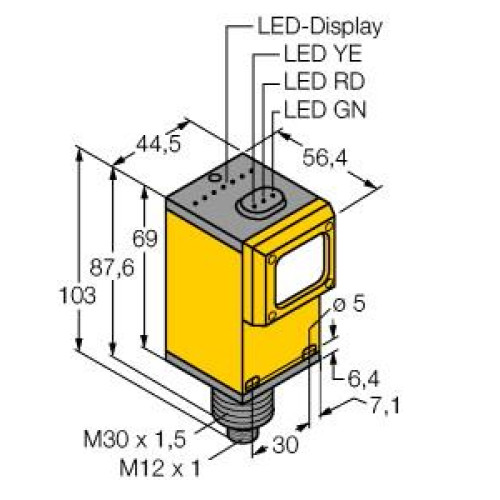

Q45 NAMUR: Receiver, Range: 6 m, Input: 5-15 V dc, Output: NAMUR, 4-pin M12 Integral QD

Manufacturer's No: Q45AD9RQ     Manufacturer: Turck Banner
Q45 NAMUR: Receiver, Range: 6 m, Input: 5-15 V dc, Output: NAMUR, 4-pin M12 Integral QD

Availability On Request

£159.70
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 5-15 VDC
  • Maximum Range: 6000 mm
  • Connector: Male M12 × 1
  • Protection Class: IP67
  • Sensitivity Adjustment: Via Potentiometer
  • NAMUR Output: Dark <= 1.2 mA, Light >= 2.1 mA
  • Compliance: EN 60947-5-6 (NAMUR), ATEX Category II 1 G
  • ATEX Zone: Ex Zone 0


Product

Manufacturer Material ID -
Q45AD9RQ
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44.5 Millimetre
Housing material -
Plastic
Length of sensor -
103 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
2 Millisecond
Sensing mode -
Light switching
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Other
Type of switching output -
NAMUR
Width sensor -
54.1 Millimetre
Turck Banner

Availability On Request

£159.70
