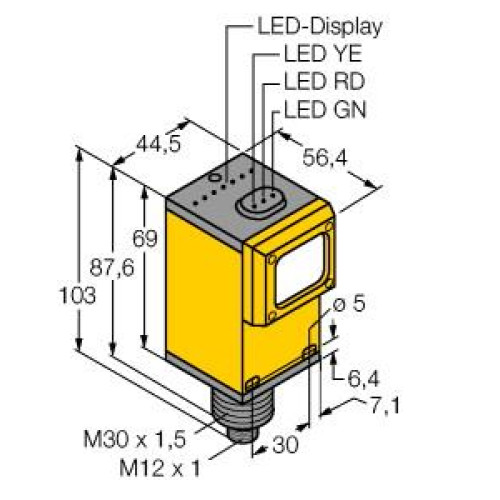

Q45 Series: Diffuse, Range: 1.8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integral QD

Manufacturer's No: Q45BB6DLQ5     Manufacturer: Turck Banner
Q45 Series: Diffuse, Range: 1.8 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integral QD

Availability Available to order

£144.14
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 1800 mm
  • Male M12 x 1
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Switching Output: Bipolar
  • Light or Dark Operation Adjusted via Switch


Product

Manufacturer Material ID -
Q45BB6DLQ5
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44.5 Millimetre
Housing material -
Plastic
Length of sensor -
103 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Max. switching distance -
1800 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
880 Nanometre
Width sensor -
56.4 Millimetre
Turck Banner

Availability Available to order

£144.14
