3036729

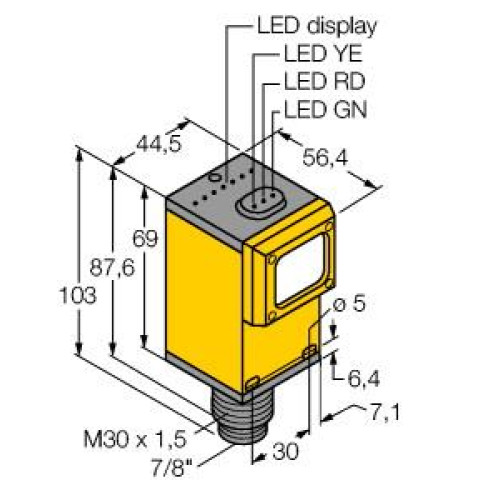

Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, Mini-style Inte

Manufacturer's No: Q45BB6FQ     Manufacturer: Turck Banner
Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, Mini-style Integral QD

Availability On Request

£140.64
  • Type: Photoelectric Sensor for Glass Fibers
  • Operating Voltage: 10-30 VDC
  • Male Connector Size: 7/8"
  • Protection Class: IP67
  • Sensitivity Adjustment: Via Potentiometer
  • Switching Output: Bipolar
  • Light or Dark Operation: Adjustable via Switch


Product

Manufacturer Material ID -
Q45BB6FQ
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
101.6 Millimetre
Housing material -
Plastic
Length amplifier -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
50 Milliampere
Switching frequency -
250 Hertz
Type of electric connection -
Connector 7/8 inch
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£140.64
