Q45 Series: Polarized Retro, Range: 0.15 -6 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: Q45BB6LP     Manufacturer: Turck Banner
Q45 Series: Polarized Retro, Range: 0.15 -6 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£150.62
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 6000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Switching output: bipolar
  • Light or dark operation, adjustable via switch


Product

Manufacturer Material ID -
Q45BB6LP
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

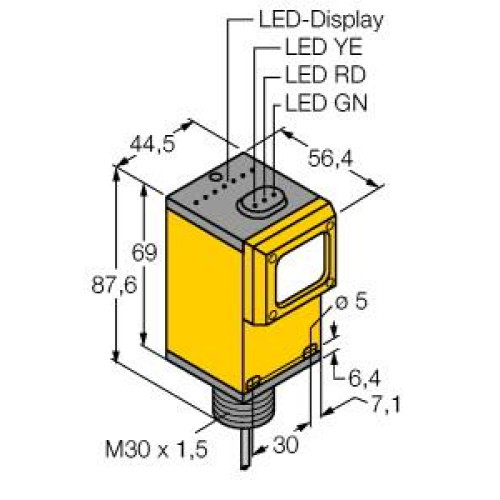

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
2 Millisecond
Reflector included -
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner
