3040214

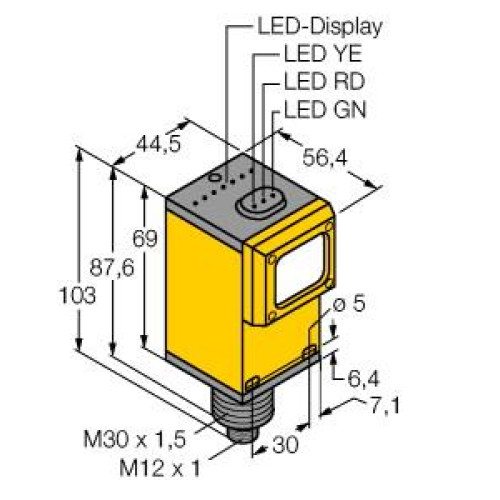

Q45 Series: Diffuse; Range: 1.8 m; Input: 90250 V ac; Output: SPST Solidstate Relay; Micro 3pin Integral QD;

Manufacturer's No: Q45BW22DLQ1
Q45 Series: Diffuse; Range: 1.8 m; Input: 90250 V ac; Output: SPST Solidstate Relay; Micro 3pin Integral QD;

Availability Back Order

£221.57
  • Type: Diffuse sensor
  • Range: 1.8 meters
  • Input: 90-250 Volts AC
  • Output: SPST Solid State Relay
  • Connector: Micro 3-pin Integral Quick Disconnect


Product

Manufacturer Material ID -
Q45BW22DLQ1
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1800 Millimetre
Reaction time -
2 Millisecond
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
44.5 Millimetre


Availability Back Order

£221.57
