3040215

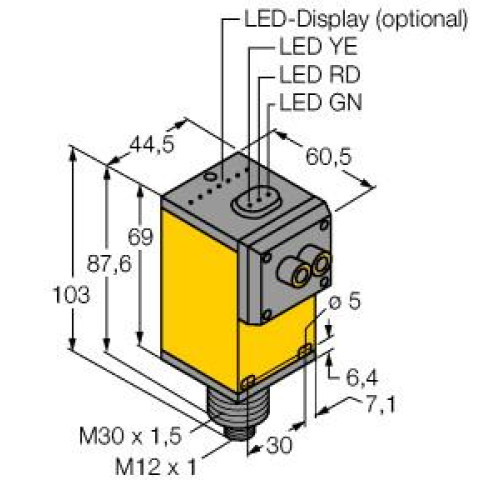

Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 90-250 V ac, Output: SPST Solid-state Relay, Micro-style I

Manufacturer's No: Q45BW22FQ1     Manufacturer: Turck Banner
Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 90-250 V ac, Output: SPST Solid-state Relay, Micro-style Integral QD

Availability On Request

£172.40
  • Type: Photoelectric Sensor for Glass Fibers
  • Operating Voltage: 90-250 VAC
  • Connector: M12 x 1 male
  • Protection Class: IP67
  • Sensitivity Adjustment: Potentiometer
  • Relay Output: NO (SPST)
  • Operation Mode: Light or Dark
  • Selector Switch for Operation Adjustment


Product

Manufacturer Material ID -
Q45BW22FQ1
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
102.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
50 Milliampere
Type of electric connection -
Connector 1/2 inch
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
Relay contact
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£172.40
