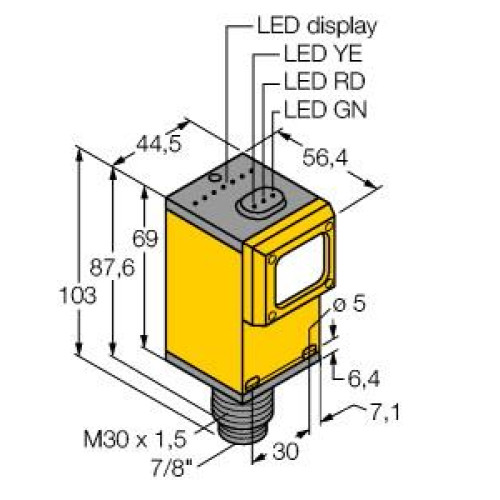

Q45 Series: Retro, Range: 0.08 - 9 m, Input: 90-250 V ac, Output: SPST Solid-state Relay, 3-pin Mini Integral QD

Manufacturer's No: Q45BW22LVQ     Manufacturer: Turck Banner
Q45 Series: Retro, Range: 0.08 - 9 m, Input: 90-250 V ac, Output: SPST Solid-state Relay, 3-pin Mini Integral QD

Availability Available to order

£176.86
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating Voltage: 90-250 VAC
  • Max. Range: 9000 mm
  • Male Connector: 7/8"
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Relay Output: NO (SPST)
  • Light or Dark Operation Adjusted via Selector Switch


Product

Manufacturer Material ID -
Q45BW22LVQ
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
101.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
9000 Millimetre
Rated switching distance -
9000 Millimetre
Reaction time -
2 Millisecond
Reflector included -
Type of electric connection -
Connector 7/8 inch
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability Available to order

£176.86
