3046360

Discrete Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: Q45UBB63BC     Manufacturer: Turck Banner
Discrete Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability Available to order

£631.52
  • Ultrasonic Sensor
  • Operating Voltage: 12-24 VDC
  • Max. Range: 3000 mm
  • Cable Length: 2 m
  • Start and End of Switching Range Adjustable via Teach Button
  • NO/NC Output Function
  • Response Time: Adjustable
  • PNP Transistor Output (NO)
  • Aperture Angle of Sonic Cone: 12°
  • Blind Zone: 25 cm

Read more

  • Range: 300 cm


Product

Manufacturer Material ID -
Q45UBB63BC
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius

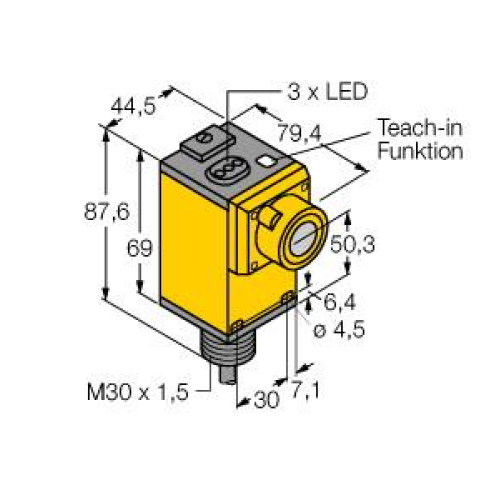

Construction type housing -
Cuboid
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
79.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
250 Millimetre
Supply voltage -
12 Volt
Switching frequency -
50 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
44.5 Millimetre
Turck Banner

Availability Available to order

£631.52
