3044134

Discrete Q45U Series: Proximity Mode, Range: 100 - 1.4 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Manufacturer's No: Q45UBB63DACQ6     Manufacturer: Turck Banner
Discrete Q45U Series: Proximity Mode, Range: 100 - 1.4 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Availability On Request

£615.19
  • Ultrasonic Sensor
  • Diffuse mode sensor with switching output
  • Operating voltage: 12-24 VDC
  • Max. range: 1400 mm
  • Adjustable start and end of switching range via teach button
  • NO/NC output function
  • Adjustable response time
  • Pump function
  • PNP/NPN transistor output (NO contact)
  • Aperture angle of sonic cone: 15°

Read more

  • Blind zone: 10 cm
  • Range: 140 cm


Product

Manufacturer Material ID -
Q45UBB63DACQ6
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius

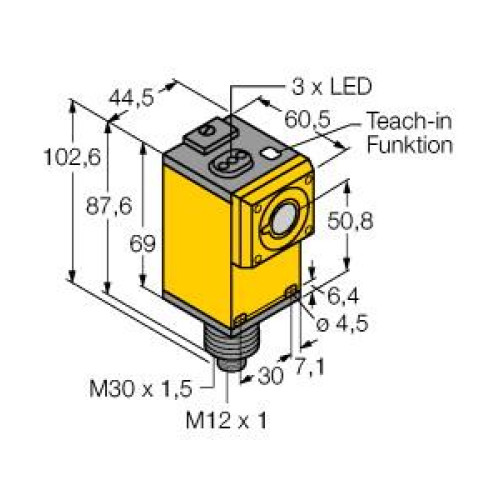

Construction type housing -
Cuboid
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
60.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
100 Millimetre
Supply voltage -
12 Volt
Switching frequency -
50 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
44.5 Millimetre
