Discrete Q45U Series: Prox. Mode w/out temp. comp., Range: 100 - 1.4 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M1

Manufacturer's No: Q45UBB63DAQ6     Manufacturer: Turck Banner
Discrete Q45U Series: Prox. Mode w/out temp. comp., Range: 100 - 1.4 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

£527.18
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-24 VDC
  • Max. range: 1400 mm
  • Start and End of switching range adjustable via teach button
  • NO/NC output function
  • Response time adjustable
  • PNP/NPN transistor output (NO contact)
  • Aperture angle of sonic cone: 15°
  • Blind zone: 10 cm
  • Range: 140 cm


Product

Manufacturer Material ID -
Q45UBB63DAQ6
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid

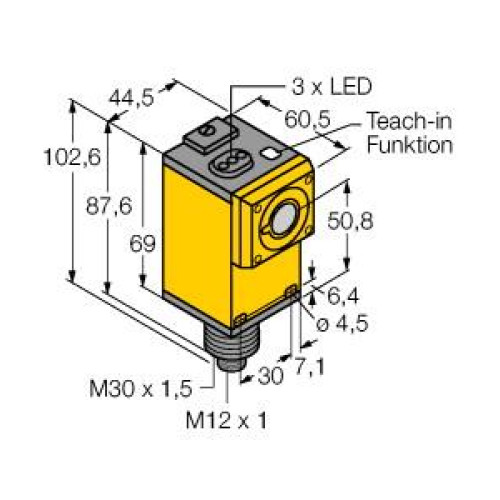

Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
60.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
100 Millimetre
Supply voltage -
12 Volt
Switching frequency -
50 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
44.5 Millimetre
