3047556

Analog Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 15-24 V dc, Output: Selectable 0-10 V dc or 4-20 mA sourcing, 9 m (30

Manufacturer's No: Q45ULIU64BCR W/30'     Manufacturer: Turck Banner
Analog Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 15-24 V dc, Output: Selectable 0-10 V dc or 4-20 mA sourcing, 9 m (30 ft) Cable

Availability On Request

£854.73
  • Type: Ultrasonic Sensor (diffuse mode)
  • Output: Analog
  • Operating Voltage: 12-24 VDC
  • Max. Range: 3000 mm
  • Cable Length: 9 m
  • Measuring Range Adjustable via Teach Button or Control Line
  • Response Time Adjustable
  • Analog Output for Voltage or Current
  • Teach-in Function for Easy Setup
  • Convertible Output Curves

Read more

  • Sonic Cone Aperture Angle: 12°
  • Blind Zone: 25 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
Q45ULIU64BCR W/30'
Net Weight -
0.88kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

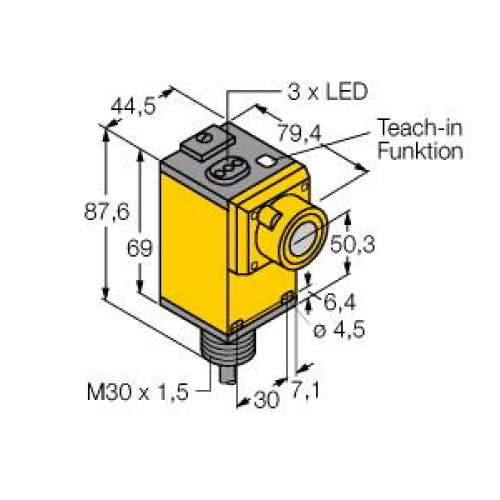

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
79.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
250 Millimetre
Supply voltage -
12 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switching output -
Other
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£854.73
