3053741

Q45UR Discrete Series: Kit, Includes:Controller Q45UR3BA63CQ6 Sensor: M18C2.0, Range: 50-250, Input: 12 - 24 V dc, Output: Bipolar

Manufacturer's No: Q45UR3BA63CQ6K     Manufacturer: Turck Banner
Q45UR Discrete Series: Kit, Includes:Controller Q45UR3BA63CQ6 Sensor: M18C2.0, Range: 50-250, Input: 12 - 24 V dc, Output: Bipolar - 1 NPN 1 PNP, M12 Integral QD

Availability On Request

£666.91
  • Ultrasonic sensor in diffuse mode
  • Max. range: 250 mm
  • Switching output: PNP/NPN adjustable, NO/NC adjustable
  • Integrated temperature compensation
  • Aperture angle of sonic cone: 15°
  • Blind zone: 5 cm
  • Range: 25 cm


Product

Manufacturer Material ID -
Q45UR3BA63CQ6K
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

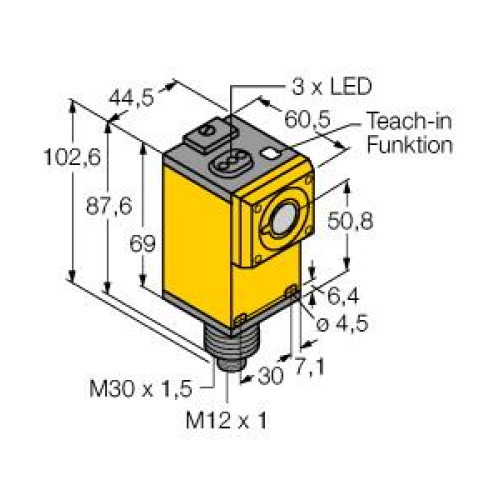

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
60.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£666.91
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
