3035440

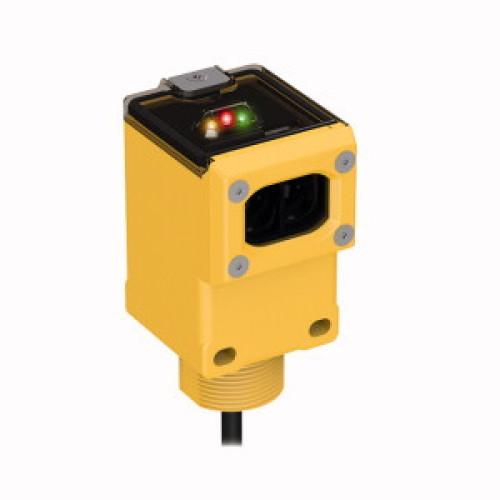

Q45 Series: Polarized Retro, Range: 0.15 -6 m, Input: 90-250 V ac, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Manufacturer's No: Q45VR2LP     Manufacturer: Turck Banner
Q45 Series: Polarized Retro, Range: 0.15 -6 m, Input: 90-250 V ac, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Availability On Request

£154.25
  • Photoelectric sensor with polarizing filter
  • Retroreflective sensor
  • Operating voltage: 90-250 VAC
  • Max. range: 6000 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Relay output: changeover (SPDT)
  • Light or dark operation selectable via selector switch


Product

Manufacturer Material ID -
Q45VR2LP
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

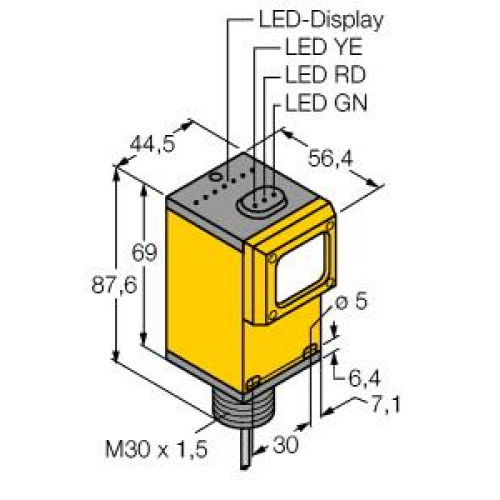

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
15 Millisecond
Reflector included -
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£154.25
