3094118

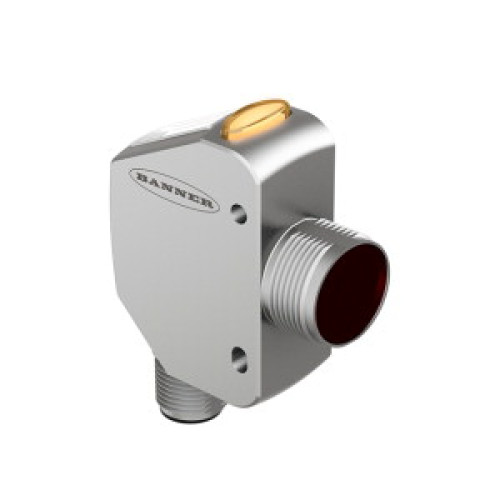

Q4X Series: Laser Adjustable Field, Range: 300, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: Q4XTBLAF300-Q8     Manufacturer: Turck Banner
Q4X Series: Laser Adjustable Field, Range: 300, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

£412.85
  • Photoelectric Sensor with Laser Distance Sensor (Triangulation)
  • Operating voltage: 10-30 VDC
  • Max. range: 300 mm
  • 4-digit 7-segment LED display
  • 3 buttons for easy operation
  • Output indicator: yellow
  • IP67/69K and ECOLAB-certified for durability
  • Range: 25-300 mm
  • Laser class 1, red, 655 nm
  • Operating voltage: 12-30 VDC

Read more

  • 1 × PNP, 1 × NPN switching output
  • Rectangular model with offset M18 thread
  • Stainless steel case (1.4404) for robustness


Product

Manufacturer Material ID -
Q4XTBLAF300-Q8
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

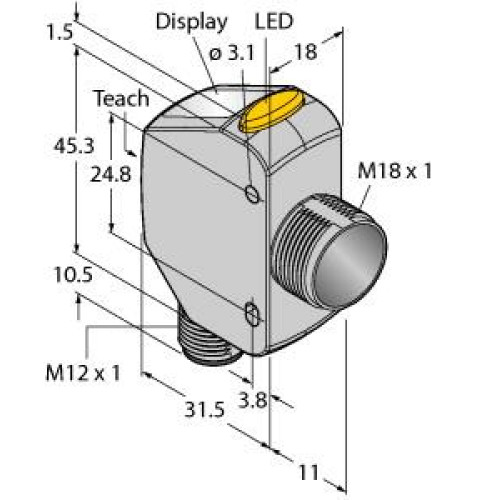

Height of sensor -
57.5 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
43.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Supply voltage -
10 Volt
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP/NPN
Width sensor -
18 Millimetre
Turck Banner

Availability On Request

£412.85
