801918 {B}

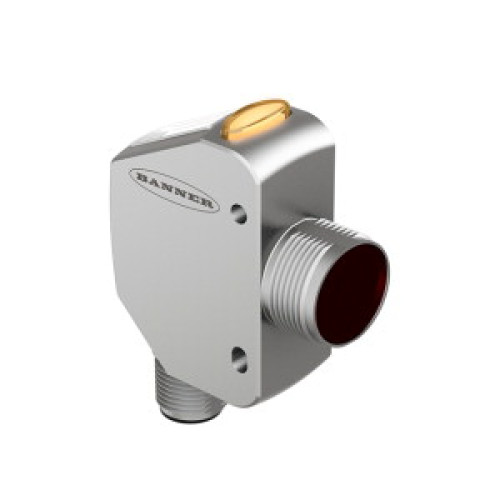

Q4X Series: Laser Adjustable Field, Range 600, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link Communication, 1 PNP, 4-pin M12 I

Manufacturer's No: Q4XTKLAF600-Q8     Manufacturer: Turck Banner
Q4X Series: Laser Adjustable Field, Range 600, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link Communication, 1 PNP, 4-pin M12 Integral QD, Threaded Barrel Housing

Availability Available to order

£524.53
  • Photoelectric Sensor with Laser Distance Sensor (Triangulation)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 600 mm
  • 4-digit 7-segment LED display
  • Output: Switching Output with IO-Link
  • 3 buttons for control
  • Output Indicator: Yellow
  • IP67/69K and ECOLAB-certified
  • Laser Class 1, red, 655 nm
  • Range: 25-600 mm

Read more

  • Rectangular model with offset M18 thread
  • Stainless steel case (1.4404)
  • Features: Teach-in input, laser control, synchronization, Pulse Frequency Modulation (PFM)
  • Transmission of process value and parameterization via IO-Link


Product

Manufacturer Material ID -
Q4XTKLAF600-Q8
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability Available to order

£524.53
