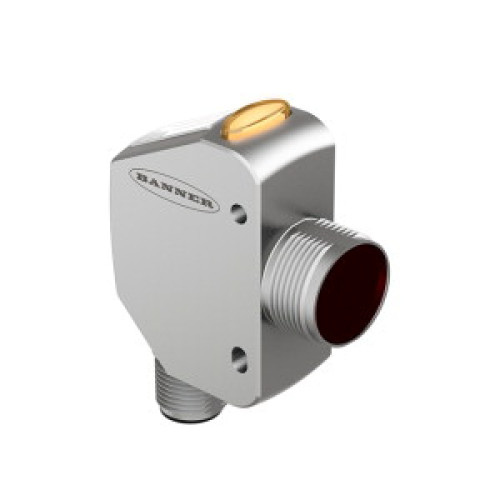

Q4X Series: Laser Adjustable Field, Range: 100, Input 12-30 V dc, Output: Analog: 0-10 V, 5-pin M12 Integral QD

Manufacturer's No: Q4XTULAF100-Q8     Manufacturer: Turck Banner
Q4X Series: Laser Adjustable Field, Range: 100, Input 12-30 V dc, Output: Analog: 0-10 V, 5-pin M12 Integral QD

Availability On Request

£544.42
  • Photoelectric Sensor with Laser Distance Sensor (Triangulation)
  • Analog Output: 0-10 VDC
  • Operating Voltage: 10-30 VDC
  • Max. Range: 100 mm
  • Range: 25-100 mm
  • Laser Class 1, 655 nm (red), acc. to IEC 60825-1:2007
  • 4-digit 7-segment LED display
  • 3 buttons for operation
  • Output indicator: yellow
  • IP67/69K and ECOLAB-certified

Read more

  • Rectangular model with offset M18 thread
  • Stainless steel case (1.4404)


Product

Manufacturer Material ID -
Q4XTULAF100-Q8
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
57.5 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
43.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Supply voltage -
10 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switching output -
Other
Width sensor -
18 Millimetre
Turck Banner

Availability On Request

£544.42
