71742 {B}

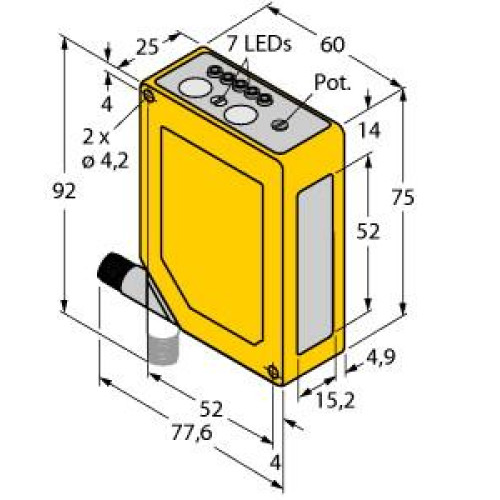

Q60 Series: Adjustable-Field Laser (Class 1), Range: 200-1400, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integra

Manufacturer's No: Q60BB6LAF1400Q     Manufacturer: Turck Banner
Q60 Series: Adjustable-Field Laser (Class 1), Range: 200-1400, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability Available to order

£406.97
  • Photoelectric sensor with laser technology
  • Diffuse mode with adjustable background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 1400 mm
  • Male M12 × 1, 5-pole connector, rotatable by 90°
  • Protection class: IP67
  • 5-segment LED display for signal indication
  • Keylock feature included
  • Switch ON/OFF delay adjustable between 8-16 ms
  • Switching output: bipolar for light or dark operation


Product

Manufacturer Material ID -
Q60BB6LAF1400Q
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
200 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
75 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
60 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1400 Millimetre
Rated switching distance -
1400 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
25 Millimetre
Turck Banner

Availability Available to order

£406.97
