71743 {B}

Q60 Series: Adjustable-Field Laser (Class 2), Range: 200-2000, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1PNP, 5-pin M12 Integral

Manufacturer's No: Q60BB6LAF2000Q     Manufacturer: Turck Banner
Q60 Series: Adjustable-Field Laser (Class 2), Range: 200-2000, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1PNP, 5-pin M12 Integral QD

Availability Available to order

£459.90
  • Type: Photoelectric Sensor, Laser Sensor, Diffuse Mode
  • Adjustable Background Suppression
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Connector: Male M12 × 1, 5-pole, rotatable by 90°
  • Protection Class: IP67
  • LED Display: 5-segment
  • Signal Indication
  • Keylock feature
  • Switch ON/OFF delay: adjustable between 8-16 ms

Read more

  • Switching Output: Bipolar
  • Light or Dark Operation


Product

Manufacturer Material ID -
Q60BB6LAF2000Q
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
200 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

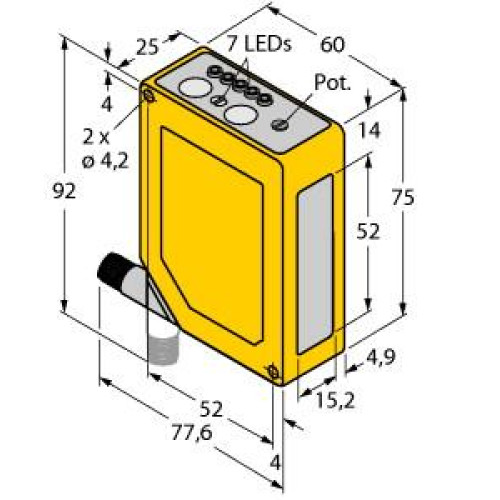

Height of sensor -
75 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
60 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
2 Millisecond
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
25 Millimetre
