3081327

QL56 Series Luminescence Sensor, Range: 20-40, Input: 15-30 V dc, Output: Bipolar (1 NPN and 1 PNP), 0.75-5.5 V analog, 5-pin M12

Manufacturer's No: QL56M6XD30BQ     Manufacturer: Turck Banner
QL56 Series Luminescence Sensor, Range: 20-40, Input: 15-30 V dc, Output: Bipolar (1 NPN and 1 PNP), 0.75-5.5 V analog, 5-pin M12 Integral QD

Availability On Request

£1,708.56
  • Type: Photoelectric Sensor, Luminescence Sensor
  • Operating Voltage: 15-30 VDC
  • Max. Range: 40 mm
  • Protection Class: IP67
  • Connector: M12 x 1, rotatable by 90°
  • Switching Output: PNP or NPN
  • Analog Output: 0-7 V
  • Memory: Non-volatile EEPROM
  • Additional Feature: Wide operating voltage range of 10-30 VDC


Product

Manufacturer Material ID -
QL56M6XD30BQ
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
HU
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

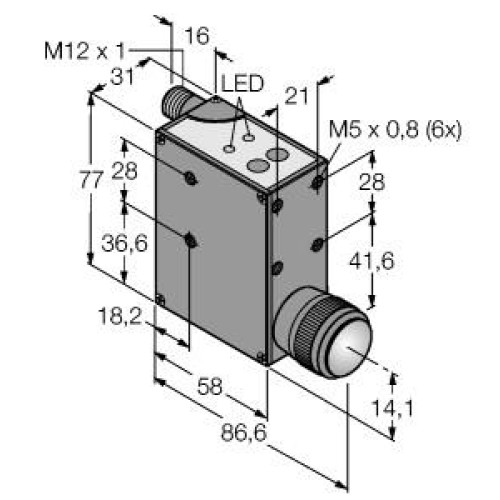

Height of sensor -
58 Millimetre
Housing material -
Other
Length of sensor -
77 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
No load current -
200 Milliampere
Type of electric connection -
Connector M12
Type of light -
Other
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
31 Millimetre
Turck Banner

Availability On Request

£1,708.56
