3044336

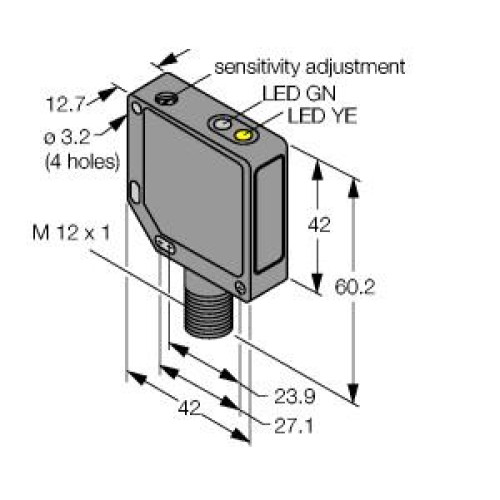

QM42 Series: Diffuse, Range: 400, Input: 10-30 V dc, Output: SPDT (Complementary) PNP, 4-pin M12 Integral QD

Manufacturer's No: QM42VP6DQ     Manufacturer: Turck Banner
QM42 Series: Diffuse, Range: 400, Input: 10-30 V dc, Output: SPDT (Complementary) PNP, 4-pin M12 Integral QD

Availability On Request

£189.64
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 400 mm
  • Male M12 × 1, 4-pin
  • Metal housing, ZN, black
  • Protection class: IP67
  • Sensitivity adjusted via potentiometer
  • PNP switching output
  • Light/dark operation


Product

Manufacturer Material ID -
QM42VP6DQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
60.2 Millimetre
Housing material -
Metal
Length of sensor -
42 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.7 Millimetre
Turck Banner

Availability On Request

£189.64
