3074318

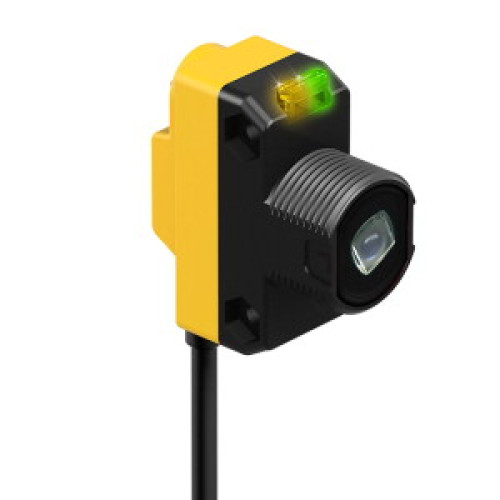

WORLD-BEAM QS18 Series: Laser Class 2, Horizntal, Range: 15 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M12 Pigtail Q

Manufacturer's No: QS186LE212Q5     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Laser Class 2, Horizntal, Range: 15 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M12 Pigtail QD

Availability On Request

£180.56
  • Photoelectric sensor with laser emitter
  • Operating voltage: 10-30 VDC
  • Maximum range: 15000 mm
  • Cable length: 0.15 m, M12 × 1, 4-pin, PVC
  • Protection class: IP67
  • LED all-round visible


Product

Manufacturer Material ID -
QS186LE212Q5
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
15000 Millimetre
Rated switching distance -
15000 Millimetre
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
