3075728

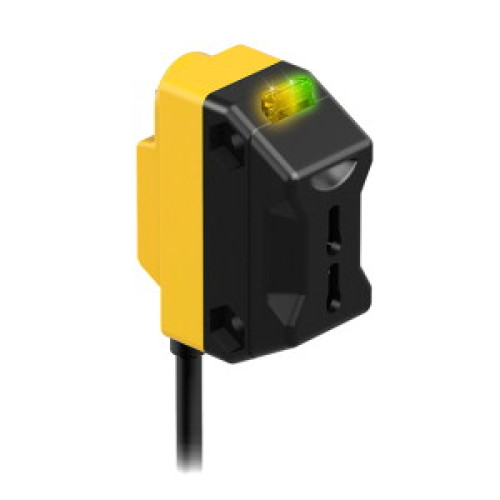

WORLD-BEAM QS18Series, Plastic Fiber, Range: Vary by Mode & Fiber Optic use, Input: 10-30 V dc, Output: PNP, 2 m Cable

Manufacturer's No: QS18EP6FP     Manufacturer: Turck Banner
WORLD-BEAM QS18Series, Plastic Fiber, Range: Vary by Mode & Fiber Optic use, Input: 10-30 V dc, Output: PNP, 2 m Cable

Availability On Request

£87.11
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Cable: PVC, 2m, 4-wire
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Sensitivity Adjustment: Via teach button
  • Switching Output: PNP
  • Operation Mode: Light or dark


Product

Manufacturer Material ID -
QS18EP6FP
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
35 Millimetre
Housing material -
Plastic
Length amplifier -
27.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
35 Milliampere
Switching frequency -
833 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width amplifier -
15 Millimetre
Turck Banner

Availability On Request

£87.11
