71999 {B}

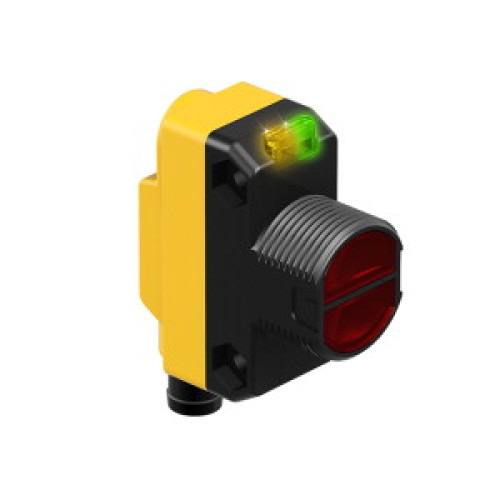

WORLD-BEAM QS18 Expert Series: Polar Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Manufacturer's No: QS18EP6LPQ7     Manufacturer: Turck Banner
WORLD-BEAM QS18 Expert Series: Polar Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Availability Available to order

£89.35
  • Type: Photoelectric Sensor (Retroreflective Sensor with Polarizing Filter)
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 3500 mm
  • Connector: Male M8 x 1, 4-pin
  • Protection Class: IP67
  • LED Indicator: All-round visible
  • Sensitivity Adjustment: Teach button
  • Output: PNP switching
  • Operation Mode: Light or dark


Product

Manufacturer Material ID -
QS18EP6LPQ7
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

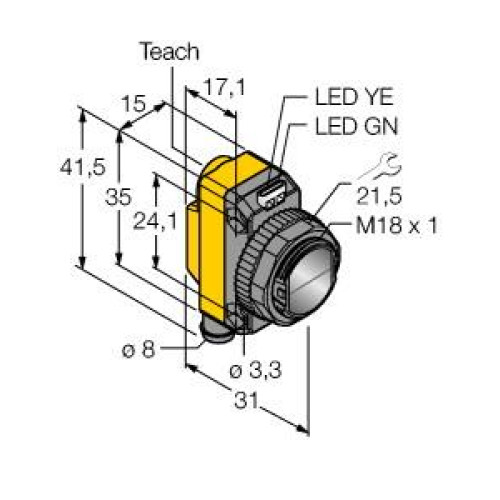

Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3500 Millimetre
Rated switching distance -
3500 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
833 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£89.35
