3097640

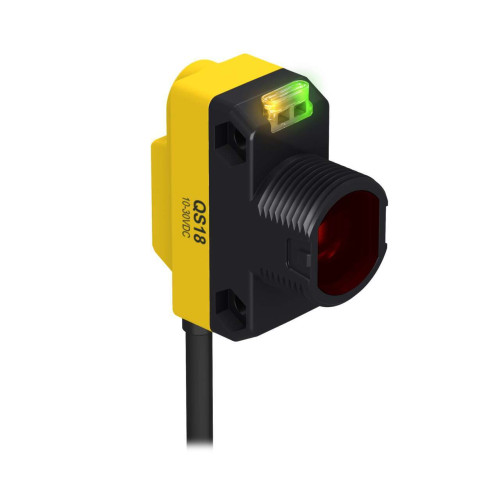

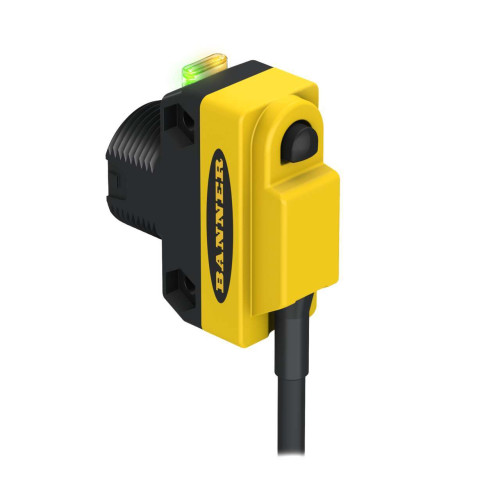

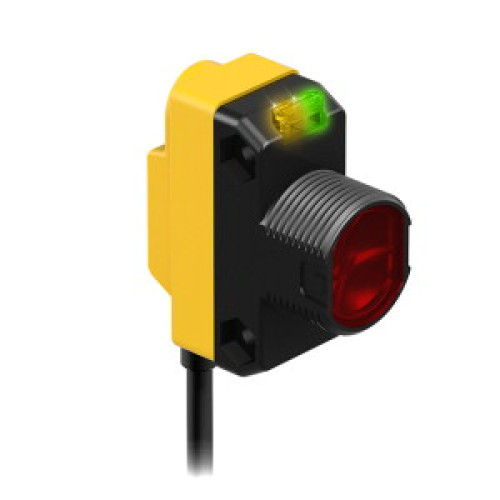

QS18Series Clear Object Sensor, Range: 3000, Input: 10-30 V dc, Output: PNP, 150 (6 in) M12 Pigtail QD

Manufacturer's No: QS18EP6XLPCQ5     Manufacturer: Turck Banner
QS18Series Clear Object Sensor, Range: 3000, Input: 10-30 V dc, Output: PNP, 150 (6 in) M12 Pigtail QD

Availability Back Order

£164.55
  • Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Cable Length: 0.15 m, Male end, M12 × 1, 4-pin, PVC
  • Protection Class: IP67
  • LED, all-round visible
  • Coaxial Optics
  • Sensitivity adjusted via teach button
  • PNP switching output
  • Light or dark operation


Product

Manufacturer Material ID -
QS18EP6XLPCQ5
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

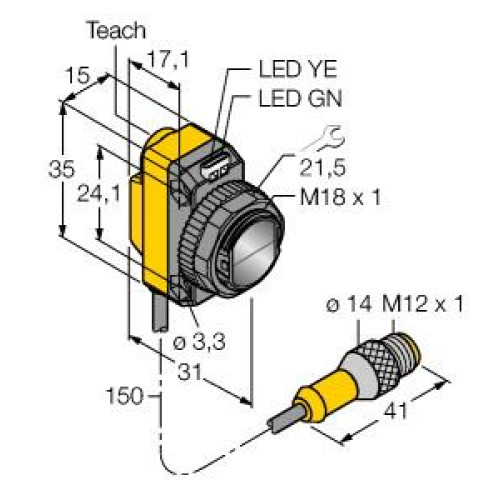

Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
0.4 Millisecond
Switching frequency -
833 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
625 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Back Order

£164.55
