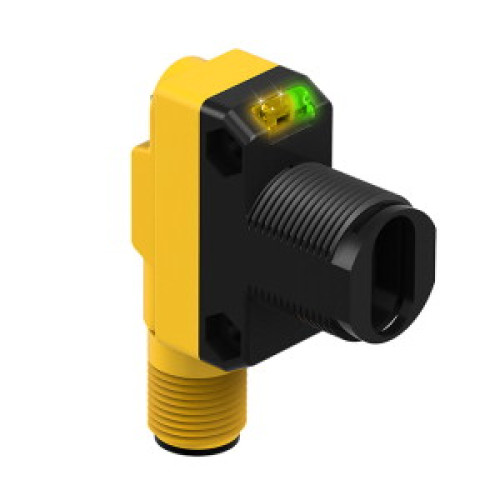

71782 {B}

WORLD-BEAM QS18Series: Glass Fiber, Range: Depends on Fiber, Input: 10-30 V dc, Output: Complementary Solid-State NPN, M12 Integra

Manufacturer's No: QS18VN6FQ8     Manufacturer: Turck Banner
WORLD-BEAM QS18Series: Glass Fiber, Range: Depends on Fiber, Input: 10-30 V dc, Output: Complementary Solid-State NPN, M12 Integral QD

Availability Available to order

£89.35
  • Photoelectric sensor for glass fibers
  • Operating voltage: 10-30 VDC
  • M12 x 1 male, 4-pin connection
  • Protection class: IP67
  • LED all-round visible
  • Sensitivity adjusted via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6FQ8
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
49 Millimetre
Housing material -
Plastic
Length amplifier -
36.9 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
800 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Width amplifier -
15 Millimetre
Turck Banner

Availability Available to order

£89.35
