3075737

WORLD-BEAM QS18 Laser Adjustable Field, Class 2 La, Rng: 20-Cutoff pt (adj btwn 50-250), Input:, Output: NPN, 150 (6 in) M12 Pigta

Manufacturer's No: QS18VN6LAF250Q5     Manufacturer: Turck Banner
WORLD-BEAM QS18 Laser Adjustable Field, Class 2 La, Rng: 20-Cutoff pt (adj btwn 50-250), Input:, Output: NPN, 150 (6 in) M12 Pigtail QD

Availability On Request

£284.00
  • Type: Photoelectric Sensor, Laser Sensor
  • Mode: Diffuse Mode with Adjustable Background Suppression
  • Operating Voltage: 10-30 VDC
  • Max. Range: 250 mm
  • Cable Length: 0.15 m, 4-pin M12 × 1 male end
  • Cable Type: PVC, 150 mm
  • Protection Class: IP67
  • LED: All-round visible
  • Cut-off Point Adjustment: Via potentiometer
  • Output: NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6LAF250Q5
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

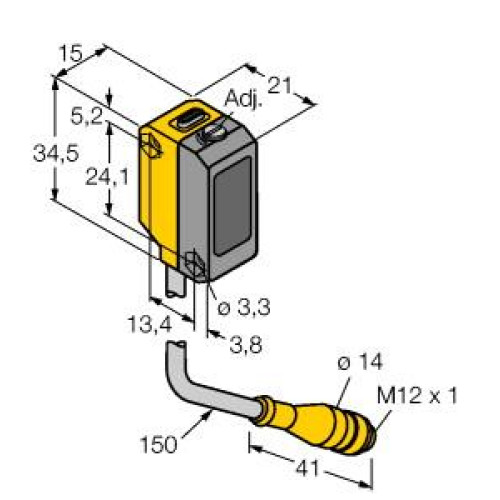

Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
250 Millimetre
Rated switching distance -
250 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
658 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£284.00
