73187 {B}

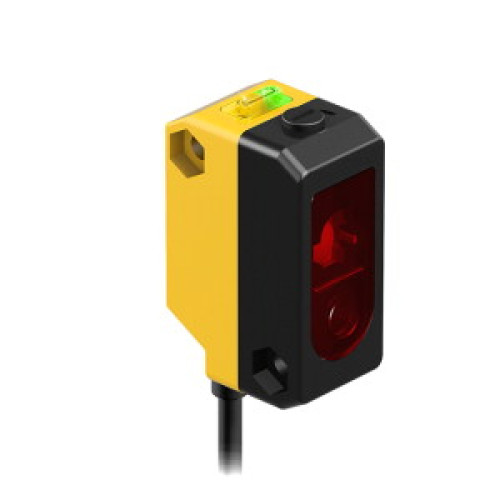

WORLD-BEAM QS18 Series: Adjustable-Field, Range: 1 to cutoff pt, Adjust. cutoff pt 30-150, Output: Complementary Solid-State NPN,

Manufacturer's No: QS18VN6LAFQ5     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Adjustable-Field, Range: 1 to cutoff pt, Adjust. cutoff pt 30-150, Output: Complementary Solid-State NPN, 150 (6 in) M12 Pigtail QD

Availability Available to order

£231.05
  • Type: Photoelectric Sensor, Laser Diffuse Mode
  • Adjustable Background Suppression
  • Operating Voltage: 10-30 VDC
  • Max. Range: 150 mm
  • Cable Length: 0.15 m, Male end
  • Connector: M12 × 1, 4-pin, PVC
  • Protection Class: IP67
  • LED Indicator
  • Cut-off Point Adjustment via Potentiometer
  • NPN Switching Output


Product

Manufacturer Material ID -
QS18VN6LAFQ5
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

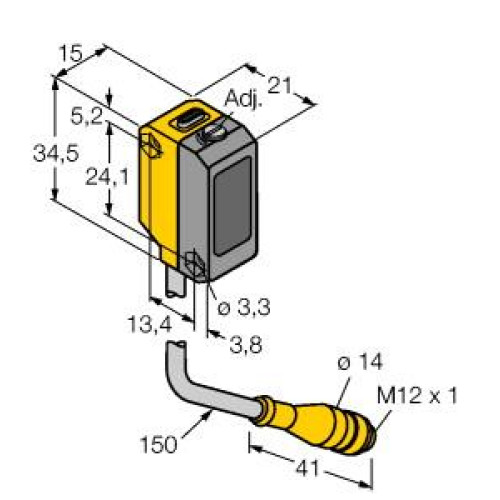

Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150 Millimetre
Rated switching distance -
150 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£231.05
