3066453

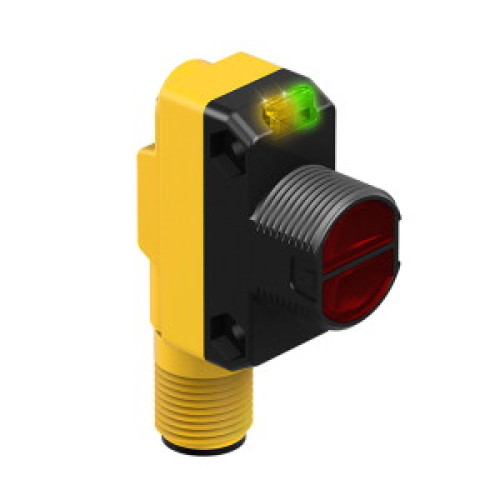

WORLD-BEAM QS18 Series: Retro, Range: 6.5 m, Input: 10-30 V dc, Output: Complementary Solid-State NPN, M12 Integral QD

Manufacturer's No: QS18VN6LVQ8     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Retro, Range: 6.5 m, Input: 10-30 V dc, Output: Complementary Solid-State NPN, M12 Integral QD

Availability On Request

£87.11
  • Photoelectric Sensor
  • Retroreflective Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 6500 mm
  • Male M12 × 1, 4-pin connector
  • Protection class: IP67
  • LED all-round visible
  • Sensitivity adjusted via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6LVQ8
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6500 Millimetre
Rated switching distance -
6500 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
800 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
