3066446

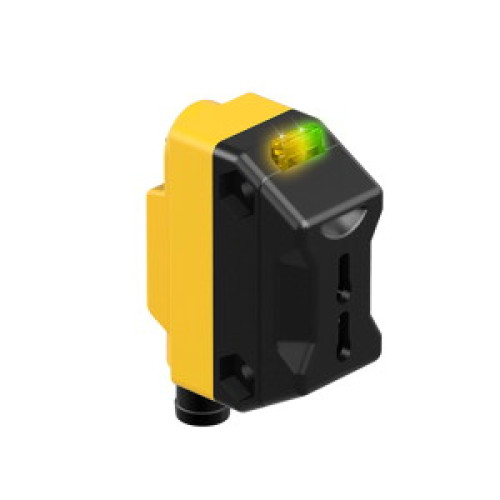

WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: PNP, M8 Integral QD

Manufacturer's No: QS18VP6FPQ7     Manufacturer: Turck Banner
WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: PNP, M8 Integral QD

Availability On Request

£87.11
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Male connector: M8 x 1, 4-pin
  • Protection class: IP67
  • LED all-round visible
  • Sensitivity adjusted via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6FPQ7
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

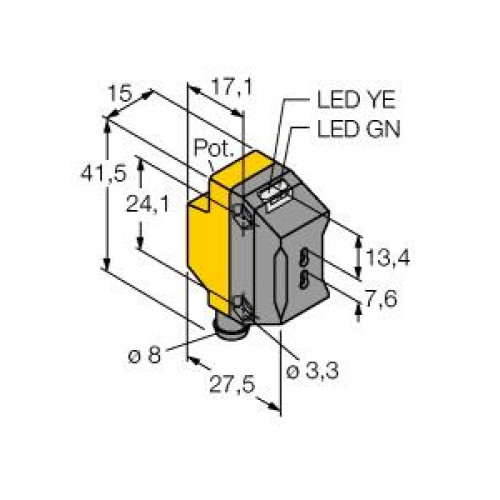

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height amplifier -
41.5 Millimetre
Housing material -
Plastic
Length amplifier -
27.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
800 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
15 Millimetre
Turck Banner

Availability On Request

£87.11
