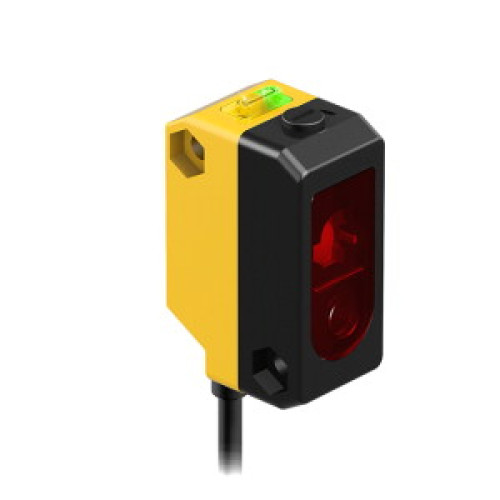

WORLD-BEAM QS18 Series: Adjustable-Field, Range: 1 to cutoff pt, Adjust. cutoff pt 30-150, Output: Complementary Solid-State PNP,

Manufacturer's No: QS18VP6LAF     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Adjustable-Field, Range: 1 to cutoff pt, Adjust. cutoff pt 30-150, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Availability Back Order

£205.97
  • Photoelectric sensor with laser diffuse mode
  • Adjustable background suppression
  • Operating voltage: 10-30 VDC
  • Max. range: 150 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED all-round visible
  • Cut-off point adjusted via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6LAF
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

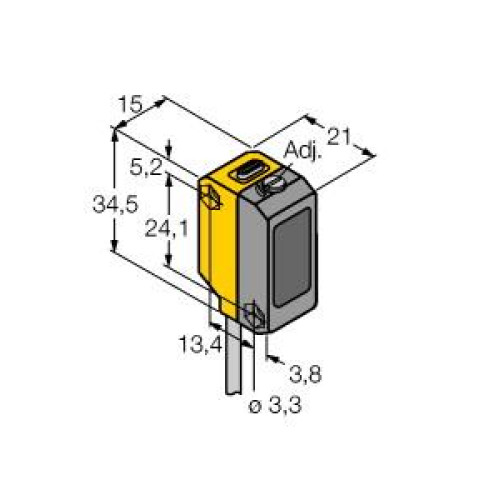

Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150 Millimetre
Rated switching distance -
150 Millimetre
Reaction time -
0.7 Millisecond
Setting procedure -
Other
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
