73243 {B}

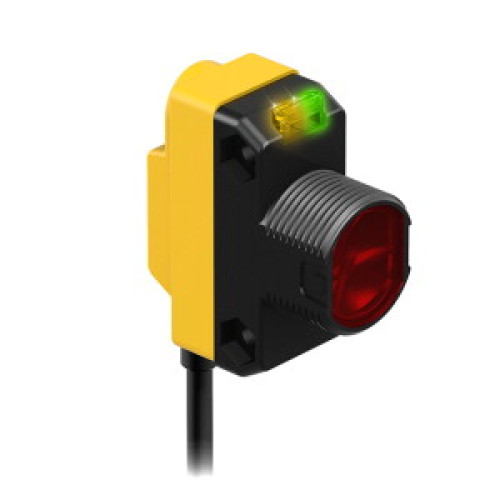

WORLD-BEAM QS18 LASER POLAR RETRO, Range: 0.1-10 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 150 M8 Pigtail QD

Manufacturer's No: QS18VP6LLPQ     Manufacturer: Turck Banner
WORLD-BEAM QS18 LASER POLAR RETRO, Range: 0.1-10 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 150 M8 Pigtail QD

Availability Available to order

£193.14
  • Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter
  • Operating voltage: 10-30 VDC
  • Max. range: 10000 mm
  • Cable length: 0.15 m, 4-pin, PVC
  • Protection class: IP67
  • LED, all-round visible
  • Sensitivity adjusted via potentiometer
  • Recommended reflectors: Microprism reflector BRT-51X51BM for up to 10 m, self-adhesive reflector film BRT-TVHG-2X2 for up to 1.5 m (included)
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6LLPQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528
Turck Banner

Availability Available to order

£193.14
