3073242

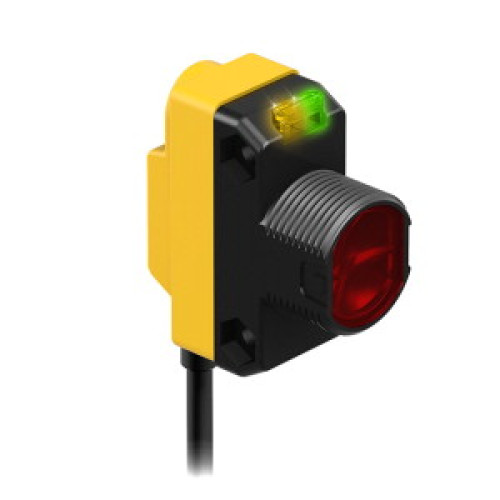

WORLD-BEAM QS18 Series: Polarized Retro, Range: 10 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 9 m (30 ft) Cable

Manufacturer's No: QS18VP6LLP W/30     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Polarized Retro, Range: 10 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 9 m (30 ft) Cable

Availability On Request

£220.49
  • Photoelectric Sensor, Retroreflective Laser Sensor with Polarizing Filter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 10000 mm
  • Cable Length: 9 m, PVC material
  • Protection Class: IP67
  • LED with all-round visibility
  • Sensitivity adjustment via potentiometer
  • Recommended reflectors: Microprism reflector BRT-51X51BM for ranges up to 10 m, self-adhesive reflector film BRT-TVHG-2X2 for ranges up to 1.5 m (included)
  • PNP switching output
  • Changeover functionality


Product

Manufacturer Material ID -
QS18VP6LLP W/30
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Laser protection class -
Class 1
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
10000 Millimetre
Rated switching distance -
10000 Millimetre
Reaction time -
0.7 Millisecond
Reflector included -
Setting procedure -
Other
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
650 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£220.49
