3079173

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detectio

Manufacturer's No: QS30ARXH2O     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detectio

Availability On Request

£287.00
  • Type: Photoelectric Sensor (Opposed Mode - Emitter/Receiver)
  • Application: Water Detection
  • Operating Voltage: 10-30 VDC
  • Max. Detection Range: 4000 mm
  • Cable Length: 2 m
  • Cable Type: PVC, 9 mm
  • Protection Class: IP67
  • Features LED all-round visibility
  • Selectable operating frequency
  • Protection against crosstalk

Read more

  • Switching Output: Bipolar, light operation


Product

Manufacturer Material ID -
QS30ARXH2O
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

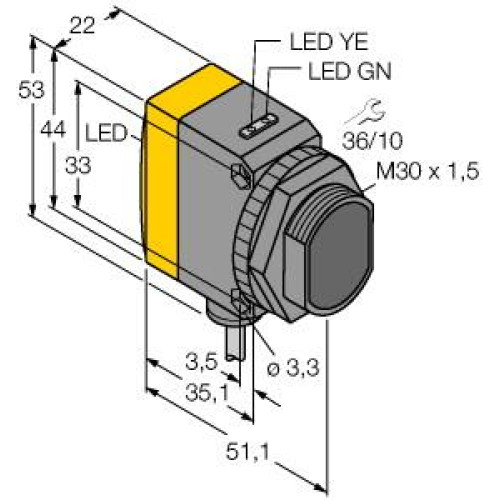

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
53 Millimetre
Housing material -
Plastic
Length of sensor -
54.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
4000 Millimetre
Rated switching distance -
4000 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£287.00
