3076092

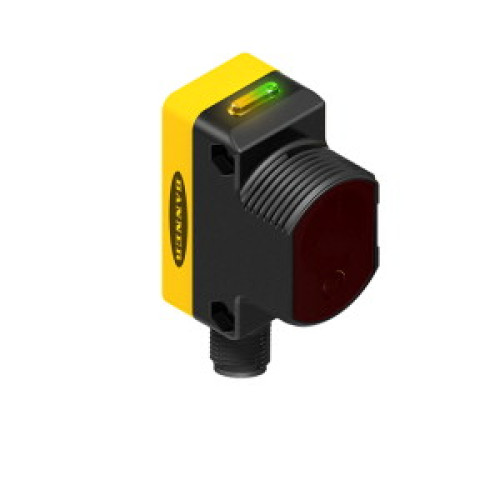

WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, Range: High-Speed Mode: 1-100, Normal: 1400, Input: 10-30 V dc, Output: Bipo

Manufacturer's No: QS30EDVQ     Manufacturer: Turck Banner
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam, Range: High-Speed Mode: 1-100, Normal: 1400, Input: 10-30 V dc, Output: Bipolar NPN/PNP, 5-pin M12 Integral QD

Availability On Request

£189.64
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 1400 mm
  • Male M12 × 1, 5-pin
  • Protection class: IP67
  • LED all-round visible
  • Teach button
  • 8-segment bargraph
  • Switching output: bipolar

Read more

  • Light or dark operation


Product

Manufacturer Material ID -
QS30EDVQ
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

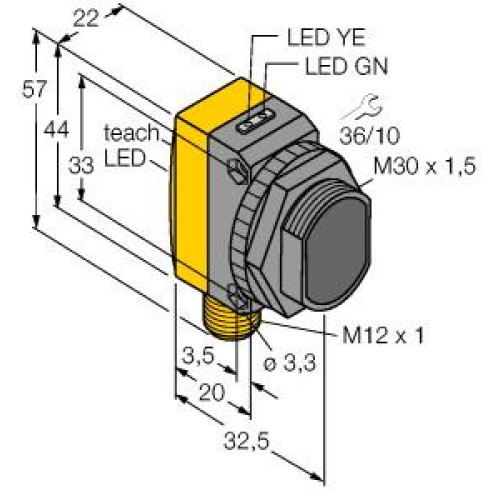

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
57 Millimetre
Housing material -
Plastic
Length of sensor -
35 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1400 Millimetre
Reaction time -
0.3 Millisecond
Switching frequency -
270 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
22 Millimetre
Turck Banner

Availability On Request

£189.64
